Manure Fertilizer Fermentation Tank for farms
With the expansion of animal husbandry, more and more farmers are aware of the importance of green-sustainable agriculture, and are paying more attention to the disposal of manure and the reduction of odor spread.
As a Chinese environmental protection machinery manufacturer, HYHH has focused on the design and development of solid waste treatment equipment for many years. HYHH has developed the high-temperature Manure Fertilizer Fermentation Tank for solving the problem of farm manure treatment and promoting resource utilization.
I. Equipment Description

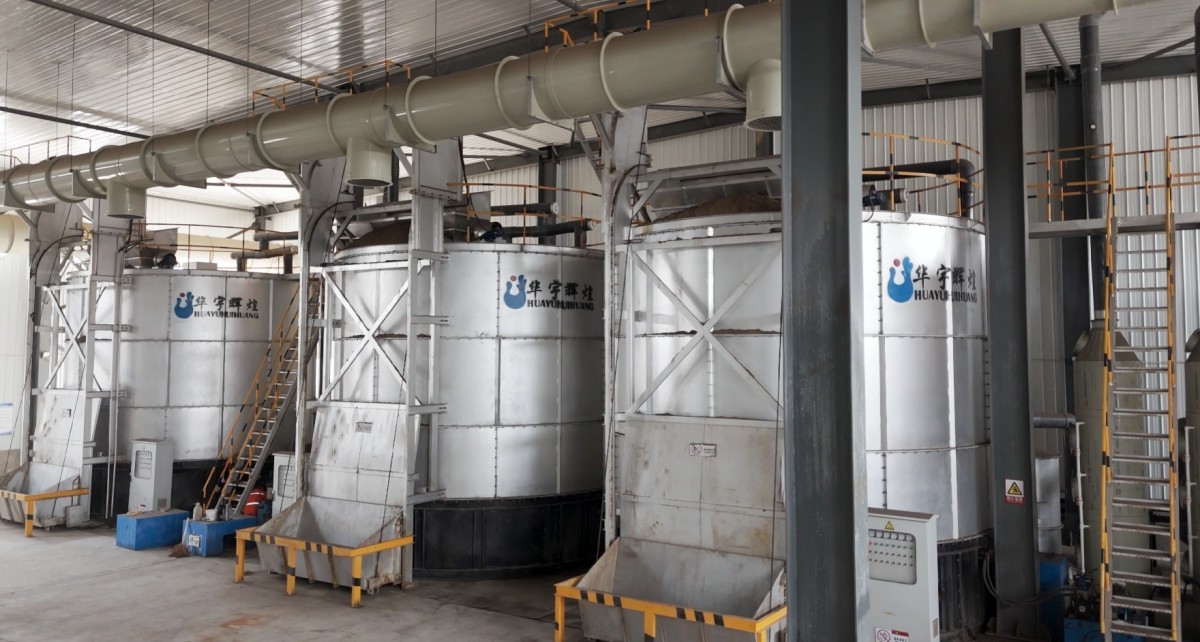

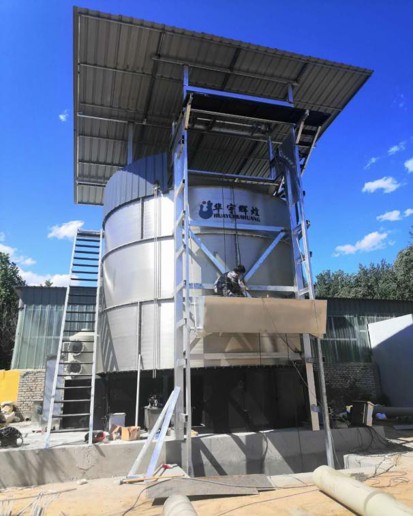

The Manure Fertilizer Fermentation Tank is a professional intelligent integrated equipment for treatment of organic waste, such as livestock and poultry manure. The processing capacity is 5~10m3/d/unit. First, the manure is mixed with return materials or biomass and high temperature biological fermentation bacteria, then use the activity of microorganisms to biologically decompose the organic matter in the waste. So that livestock and poultry manure is converted into organic fertilizer for soil improvement and landscaping, and finally realize the resource utilization of livestock and poultry manure.
II. Applicable Scenarios

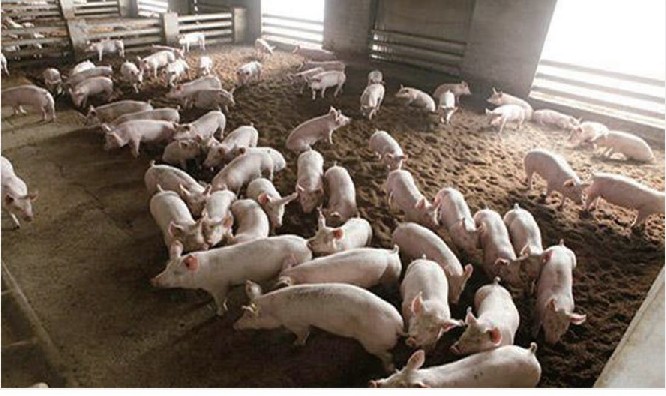

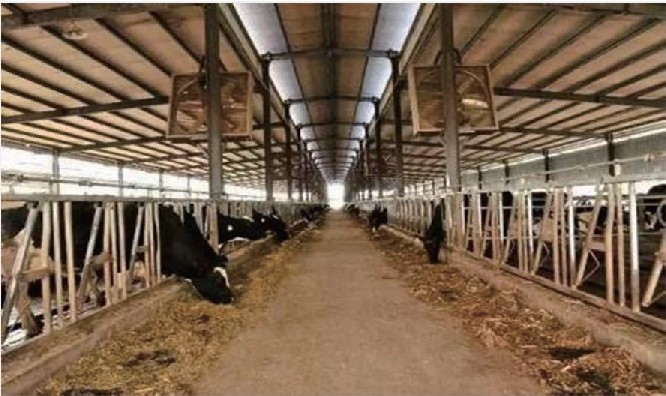

Manure treatment in farms such as chicken farms, pig farms, and cattle farms.
III. Advantages
1. Good sealing performance, can be used normally in bad weather

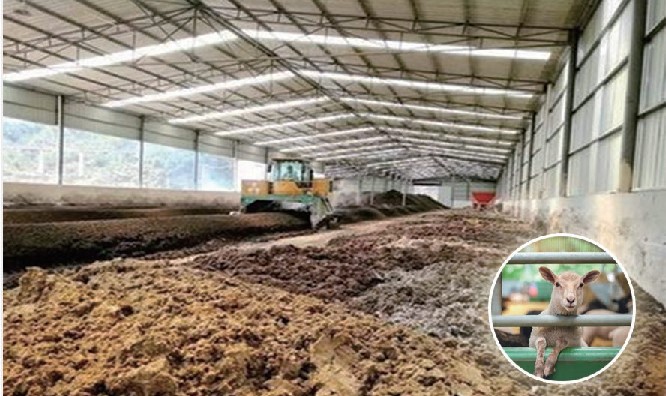

The interior of the Manure Fertilizer Fermentation Tank is made of stainless steel and the exterior is made of carbon steel, which is not easy to corrode. The equipment is designed to be sealed as a whole and equipped with an insulation system. Compared with traditional composting, it is less affected by the climate and can operate normally in rainy or cold weather.
2. Aerobic fermentation process, safe and environmentally friendly
The Manure Fertilizer Fermentation Tank adopts a microbial high-temperature aerobic fermentation process, which uses the activity of microorganisms to decompose the organic matter in the manure, and finally produces an organic fertilizer matrix. During the operation, only the deodorization system consumes a small amount of chemical agents, which has the characteristics of low operating costs. In addition, compared with the anaerobic biogas production process, it requires less construction site and is safer and more environmentally friendly.
| | Input properties |
| Output properties |
3. High degree of automation and simple operation
PLC is combined with the host computer to realize remote control and convenient operation. The Manure Fertilizer Fermentation Tank can be fed once a day or in batches. Except for manual operation of feeding and discharging and regular maintenance, it can realize 24h automatic continuous operation during normal operation.
4. Equipped with deodorization system

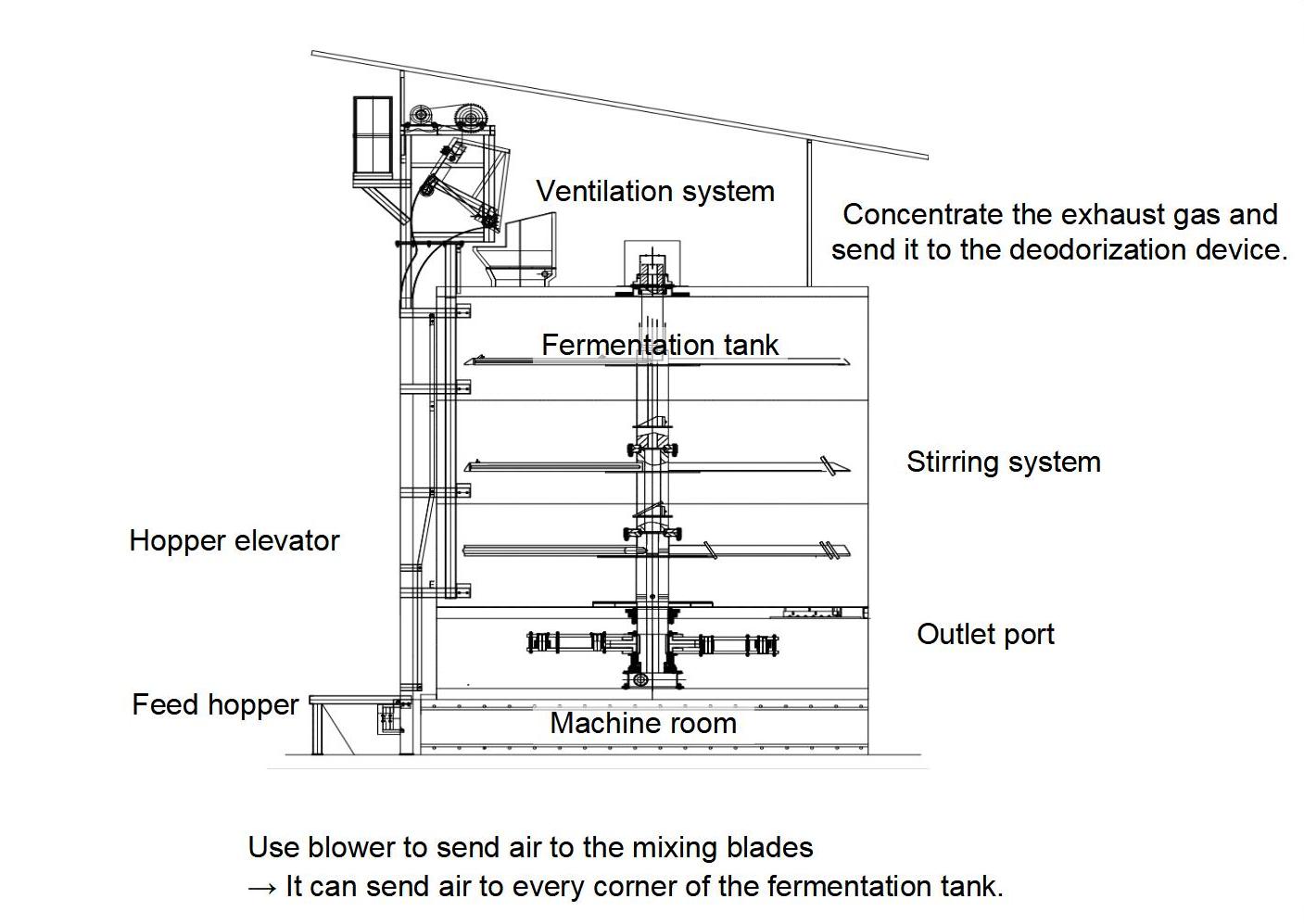

To prevent the odor from leakage, the Manure Fertilizer Fermentation Tank adopts a closed structure and is equipped with a deodorization system to collect the odor in the equipment and treat it uniformly. The deodorization system consists of odor collection pipe, washing tower and chimney to ensure that the gas is discharged in compliance with the standards. As the same time,it will not cause adverse effects on the surrounding atmospheric environment.
5. HYHH provide full-cycle services
HYHH provides full-cycle services including customized design, solutions, equipment processing, installation guidance and operation training, with a one-year after-sales warranty. During the use period, a professional after-sales team will provide you with considerate service and support. If necessary, please feel free to contact with us!
